2 | Customize Fusion Dashboard

Generic Dashboard Component

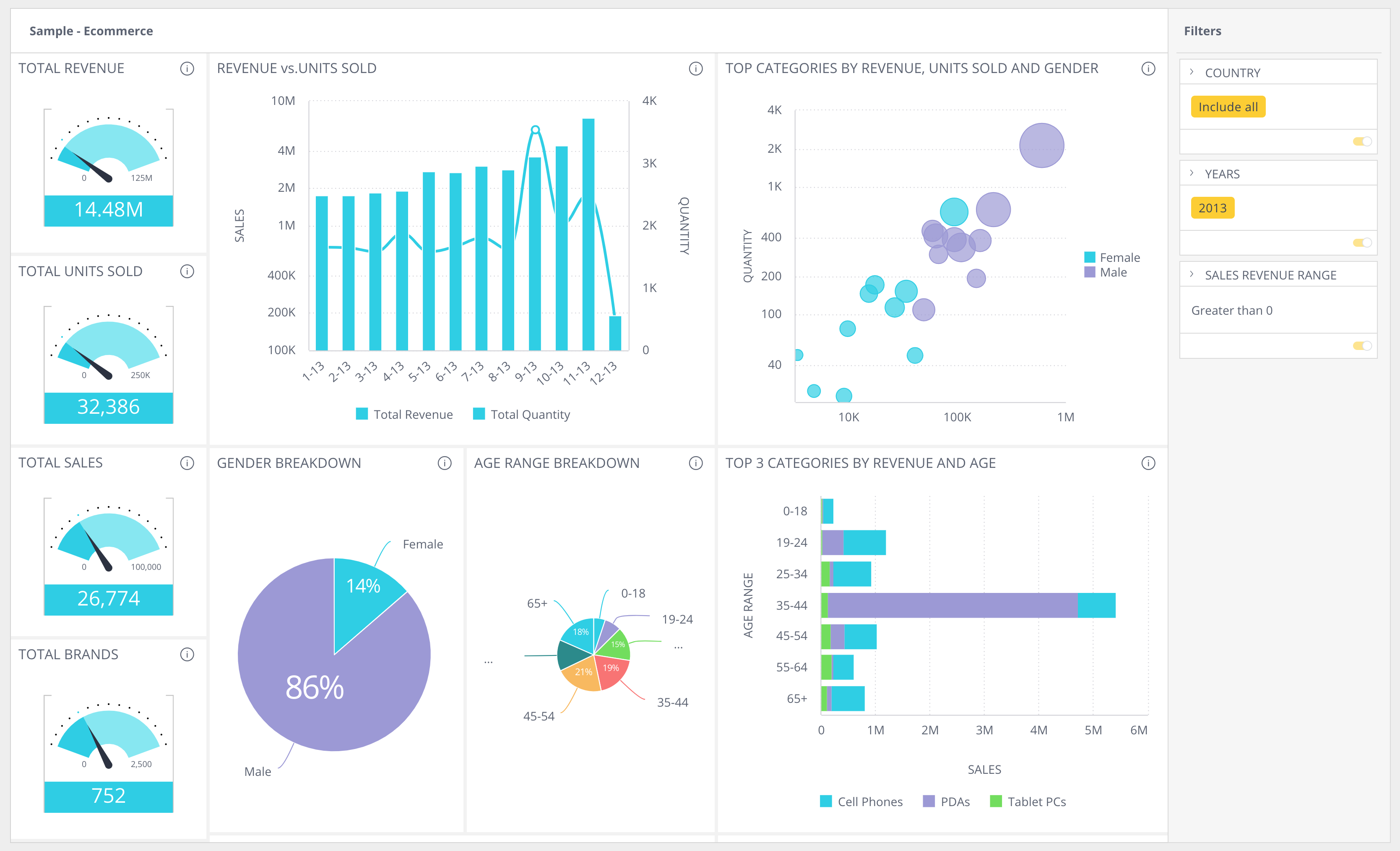

You can write a little more code to embed the dashboard with customizations. In the following example, we use a combination of the useGetDashboardModel hook and Dashboard component, in lieu of the DashboardById component.

React

import { Dashboard, dashboardModelTranslator, useGetDashboardModel } from '@sisense/sdk-ui';

const CodeExample = () => {
  // DashboardModel is the data representation of a Fusion dashboard in Compose SDK
  const { dashboard } = useGetDashboardModel({
    dashboardOid: 'your-dashboard-oid',
    includeFilters: true,
    includeWidgets: true,
  });

  if (!dashboard) {
    return null;
  }

  // DashboardProps is a set of properties for the generic Dashboard component
  const { title, widgets, layoutOptions, filters, styleOptions, widgetsOptions } =
    dashboardModelTranslator.toDashboardProps(dashboard);

  return (
    <Dashboard
      title={title}
      layoutOptions={layoutOptions}
      widgets={widgets}
      filters={filters}
      styleOptions={styleOptions}
      widgetsOptions={widgetsOptions}
    />
  );
};

export default CodeExample;

Angular

import { Component } from '@angular/core';
import {
  type DashboardProps,
  DashboardService,
  dashboardModelTranslator,
} from '@sisense/sdk-ui-angular';

@Component({
  selector: 'code-example',
  template: `
    <div style="width: 100vw">
      <csdk-dashboard
        *ngIf="dashboardProps"
        [title]="dashboardProps.title"
        [layoutOptions]="dashboardProps.layoutOptions"
        [widgets]="dashboardProps.widgets"
        [filters]="dashboardProps.filters"
        [defaultDataSource]="dashboardProps.defaultDataSource"
        [widgetsOptions]="dashboardProps.widgetsOptions"
      />
    </div>
  `,
})
export class CodeExampleComponent {
  dashboardProps: DashboardProps | null = null;

  constructor(private dashboardService: DashboardService) {}

  async ngOnInit(): Promise<void> {
    const dashboardModel = await this.dashboardService.getDashboardModel(
      '66fb233ae2c222003368dac1',
      { includeWidgets: true, includeFilters: true },
    );
    this.dashboardProps = dashboardModelTranslator.toDashboardProps(dashboardModel);
  }
}

Vue

<script setup lang="ts">
import { dashboardModelTranslator, useGetDashboardModel, Dashboard } from '@sisense/sdk-ui-vue';
import { computed } from 'vue';

const { dashboard } = useGetDashboardModel({
  dashboardOid: 'your-dashboard-oid',
  includeWidgets: true,
  includeFilters: true,
});

const dashboardProps = computed(() =>
  dashboard.value ? dashboardModelTranslator.toDashboardProps(dashboard.value) : null,
);
</script>
<template>
  <div style="width: 100vw">
    <Dashboard
      v-if="dashboardProps"
      :title="dashboardProps.title"
      :layoutOptions="dashboardProps.layoutOptions"
      :widgets="dashboardProps.widgets"
      :filters="dashboardProps.filters"
      :defaultDataSource="dashboardProps.defaultDataSource"
      :widgetsOptions="dashboardProps.widgetsOptions"
      :styleOptions="dashboardProps.styleOptions"
    />
  </div>
</template>

As shown in the code, there is a clear separation between DashboardModel and DashboardProps.

In Compose SDK, DashboardModel is the data representation of a Fusion dashboard – in other words, metadata of a Fusion dashboard.

On the other hand, DashboardProps is a set of properties for the generic Dashboard component.

Following the design principle of Separation of Concerns, DashboardProps and Dashboard are no longer coupled to the DashboardModel.

It is still very simple to translate the DashboardModel to DashboardProps using the provided utilty function, dashboardModelTranslator.toDashboardProps, and you have access to all elements of the dashboard for manipulation, which we will demonstrate in the next example.

Customize Embedded Fusion Dashboard

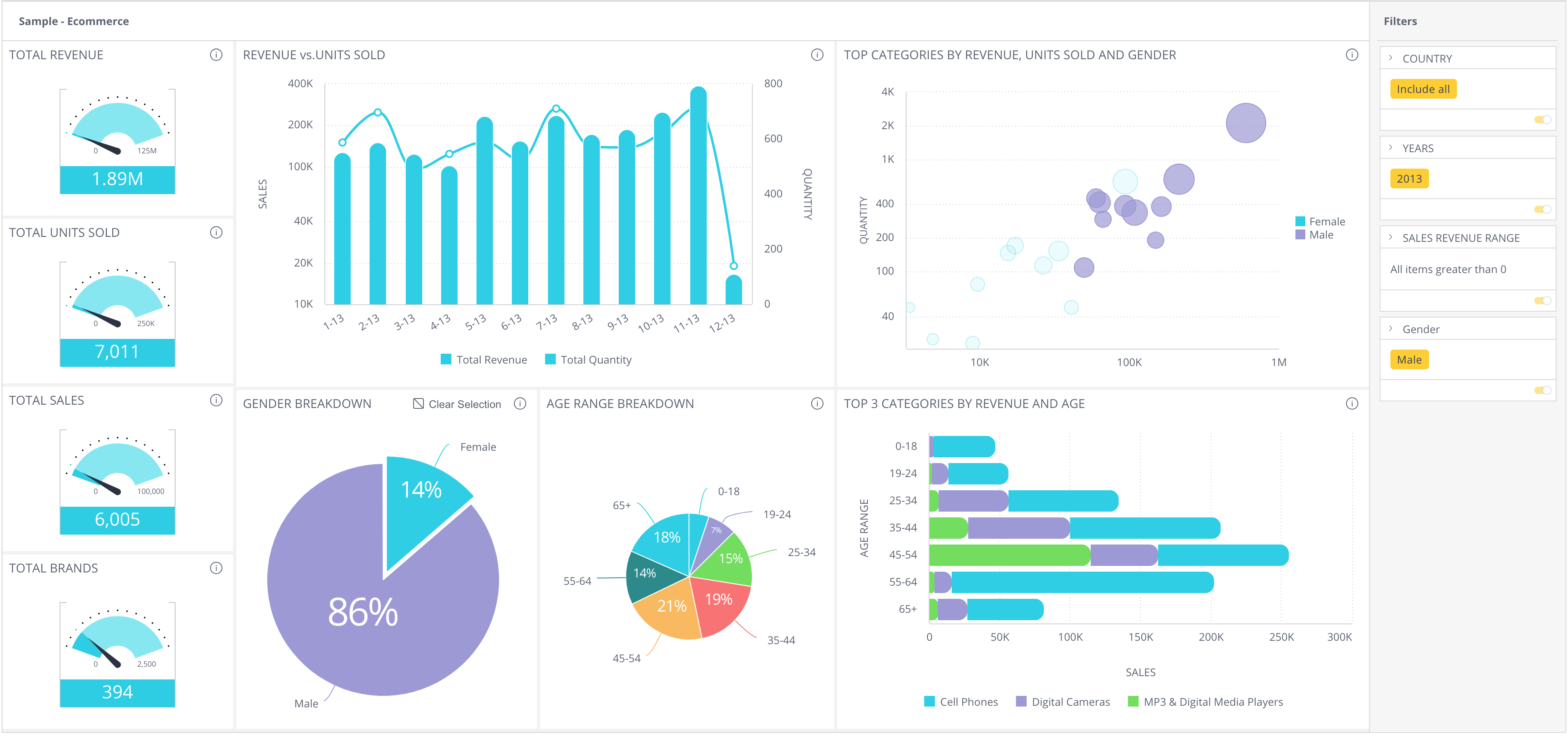

Here, we add a dashboard filter on the Gender dimension. We also customize the look of the charts by adding rounded corners for the bars.

Basically, a dashboard and its props are composed of existing building blocks in Compose SDK including ChartWidget and *FilterTile. Any APIs supported in chart widgets like onBeforeRender, onDataPointClick are also available for manipulation in DashboardProps.widgets.

React

import { Dashboard, dashboardModelTranslator, useGetDashboardModel } from '@sisense/sdk-ui';
import * as DM from './sample-ecommerce';
import { filterFactory } from '@sisense/sdk-data';

const CodeExample = () => {
  // DashboardModel is the data representation of a Fusion dashboard in Compose SDK
  const { dashboard } = useGetDashboardModel({
    dashboardOid: 'your-dashboard-oid',
    includeFilters: true,
    includeWidgets: true,
  });

  if (!dashboard) {
    return null;
  }

  // DashboardProps is a set of properties for the Dashboard component
  const { title, widgets, layoutOptions, filters, styleOptions, widgetsOptions } =
    dashboardModelTranslator.toDashboardProps(dashboard);

  // Add a filter to the dashboard filters
  const updatedFilters = [...filters, filterFactory.members(DM.Commerce.Gender, ['Male'])];

  // Customize the look of the chart widgets that are based on Highcharts
  const updatedWidgets = widgets.map((widget) => ({
    ...widget,
    onBeforeRender: (highchartsOptions: any) => {
      highchartsOptions.series.forEach((s: any) => {
        s.borderRadiusTopLeft = `10px`;
        s.borderRadiusTopRight = `10px`;
      });
      return highchartsOptions;
    },
  }));

  return (
    <Dashboard
      title={title}
      layoutOptions={layoutOptions}
      widgets={updatedWidgets}
      filters={updatedFilters}
      styleOptions={styleOptions}
      widgetsOptions={widgetsOptions}
    />
  );
};

export default CodeExample;

Angular

import { Component } from '@angular/core';
import {
  type DashboardProps,
  DashboardService,
  dashboardModelTranslator,
} from '@sisense/sdk-ui-angular';
import * as DM from './sample-ecommerce';
import { filterFactory } from '@sisense/sdk-data';

@Component({
  selector: 'code-example',
  template: `
    <div style="width: 100vw">
      <csdk-dashboard
        *ngIf="dashboardProps"
        [title]="dashboardProps.title"
        [layoutOptions]="dashboardProps.layoutOptions"
        [widgets]="dashboardProps.widgets"
        [filters]="dashboardProps.filters"
        [defaultDataSource]="dashboardProps.defaultDataSource"
        [widgetsOptions]="dashboardProps.widgetsOptions"
      />
    </div>
  `,
})
export class CodeExampleComponent {
  dashboardProps: DashboardProps | null = null;

  constructor(private dashboardService: DashboardService) {}

  async ngOnInit(): Promise<void> {
    const dashboardModel = await this.dashboardService.getDashboardModel(
      'your-dashboard-oid',
      { includeWidgets: true, includeFilters: true },
    );

    this.dashboardProps = dashboardModelTranslator.toDashboardProps(dashboardModel);

    const { filters, widgets } = this.dashboardProps;

    // Add a filter to the dashboard filters
    this.dashboardProps.filters = [
      ...(filters ?? []),
      filterFactory.members(DM.Commerce.Gender, ['Male']),
    ];

    // Customize the look of the chart widgets that are based on Highcharts
    this.dashboardProps.widgets = widgets.map((widget) => ({
      ...widget,
      onBeforeRender: (highchartsOptions: any) => {
        highchartsOptions.series.forEach((s: any) => {
          s.borderRadiusTopLeft = `10px`;
          s.borderRadiusTopRight = `10px`;
        });
        return highchartsOptions;
      },
    }));
  }
}

Vue

<script setup lang="ts">
import { filterFactory } from '@sisense/sdk-data';
import { dashboardModelTranslator, useGetDashboardModel, Dashboard } from '@sisense/sdk-ui-vue';
import * as DM from '../assets/sample-ecommerce-model';
import { computed } from 'vue';

const { dashboard } = useGetDashboardModel({
  dashboardOid: '66fb233ae2c222003368dac1',
  includeWidgets: true,
  includeFilters: true,
});

const dashboardProps = computed(() => {
  if (!dashboard.value) {
    return null;
  }

  const props = dashboardModelTranslator.toDashboardProps(dashboard.value);

  return {
    ...props,
    // Add a filter to the dashboard filters
    filters: [...props.filters, filterFactory.members(DM.Commerce.Gender, ['Male'])],
    // Customize the look of the chart widgets that are based on Highcharts
    widgets: props.widgets.map((widget) => ({
      ...widget,
      onBeforeRender: (highchartsOptions: any) => {
        highchartsOptions.series.forEach((s: any) => {
          s.borderRadiusTopLeft = `10px`;
          s.borderRadiusTopRight = `10px`;
        });
        return highchartsOptions;
      },
    })),
  };
});
</script>
<template>
  <div style="width: 100vw">
    <Dashboard
      v-if="dashboardProps"
      :title="dashboardProps.title"
      :layoutOptions="dashboardProps.layoutOptions"
      :widgets="dashboardProps.widgets"
      :filters="dashboardProps.filters"
      :defaultDataSource="dashboardProps.defaultDataSource"
      :widgetsOptions="dashboardProps.widgetsOptions"
      :styleOptions="dashboardProps.styleOptions"
    />
  </div>
</template>

Note

Alternative to manipulating DashboardProps.filters directly, you can use dashboard helper functions available from each of the sdk-ui-* packages.

Next Up

In this section you learned how to embed a Fusion dashboard and customize it to your specific needs using the Dashboard component. In the next section, you'll see how to compose a dashboard fully in code.

Go to the next lesson.
