Class DrilldownWidget

Vue component designed to add drilldown functionality to any type of chart

It acts as a wrapper around a given chart component, enhancing it with drilldown capabilities

The widget offers several features including:

• A context menu for initiating drilldown actions (can be provided as a custom component)
• Breadcrumbs that not only allow for drilldown selection slicing but also provide an option to clear the selection (can be provided as a custom component)
• Filters specifically created for drilldown operation
• An option to navigate to the next drilldown dimension

When an initialDimension is specified, the drilldownDimension will automatically inherit its value, even before any points on the chart are selected. This allows for complete control over the chart's dimensions to be handed over to the DrilldownWidget

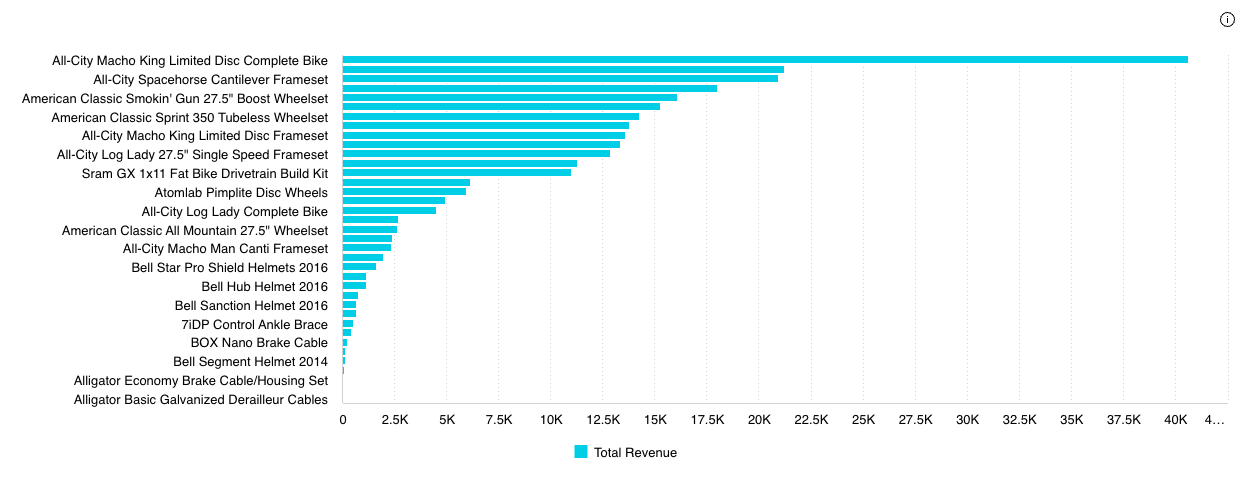

Example

Here's how to use the DrilldownWidget component:

<template>
   <DrilldownWidget
     :drilldownPaths="drilldownPaths"
     :initialDimension="dimProductName"
   >
     <template
       #chart="{ drilldownFilters, drilldownDimension, onDataPointsSelected, onContextMenu }"
     >
       <ChartWidget
         chart-type="bar"
         v-bind:filters="drilldownFilters"
         :dataOptions="{
           ...chartProps.dataOptions,
           category: [drilldownDimension],
         }"
         :highlight-selection-disabled="true"
         :dataSet="chartProps.dataSet"
         :style="chartProps.styleOptions"
         :on-data-points-selected="(dataPoints: any, event: any) => {
           onDataPointsSelected(dataPoints);
           onContextMenu({ left: event.clientX, top: event.clientY });
         }"
         :on-data-point-click="(dataPoint: any, event: any) => {
           onDataPointsSelected([dataPoint]);
           onContextMenu({ left: event.clientX, top: event.clientY });
         }"
         :on-data-point-context-menu="(dataPoint: any, event: any) => {
           onDataPointsSelected([dataPoint]);
           onContextMenu({ left: event.clientX, top: event.clientY });
         }"
       />
     </template>
   </DrilldownWidget>
</template>

<script>
import { ref } from 'vue';
import { DrilldownWidget } from '@sisense/sdk-ui-vue';

const chartProps = ref<ChartProps>({
 chartType: 'bar',
 dataSet: DM.DataSource,
 dataOptions: {
   category: [dimProductName],
   value: [{ column: measureTotalRevenue, sortType: 'sortDesc' }],
   breakBy: [],
 },
 filters: [filterFactory.topRanking(dimProductName, measureTotalRevenue, 10)],
 styleOptions: {
   xAxis: {
     title: {
       text: 'Product Name',
       enabled: true,
     },
   },
   yAxis: {
     title: {
       text: 'Total Revenue',
       enabled: true,
     },
   },
 },
});
const drilldownPaths = [DM.DimCountries.CountryName, DM.DimProducts.ProductName];
const dimProductName = DM.DimProducts.ProductName;
</script>

Param

DrilldownWidget properties

Properties

Widget

config

readonly config: DrilldownWidgetConfig

An object that allows users to pass advanced configuration options as a prop for the DrilldownWidget component

---

drilldownDimensions

readonly drilldownDimensions: Attribute[] | undefined

List of dimensions to allow drilldowns on

Deprecated

Use drilldownPaths instead

---

drilldownPaths

readonly drilldownPaths: (Attribute | Hierarchy)[] | undefined

Dimensions and hierarchies available for drilldown on.

---

initialDimension

readonly initialDimension: Attribute

Initial dimension to apply first set of filters to
