Custom Widgets

Note: This guide is for Angular. For other frameworks, see the React and Vue guides.

This guide explains how to define your own custom widget component and register it in your application code, so that it will be automatically rendered (based on the corresponding widget type) when using the DashboardById component. Custom widgets in Compose SDK can be used to replace Fusion plugins when displaying dashboards.

Note: It is assumed that the application is already configured correctly for use with Compose SDK.

Sample dashboard

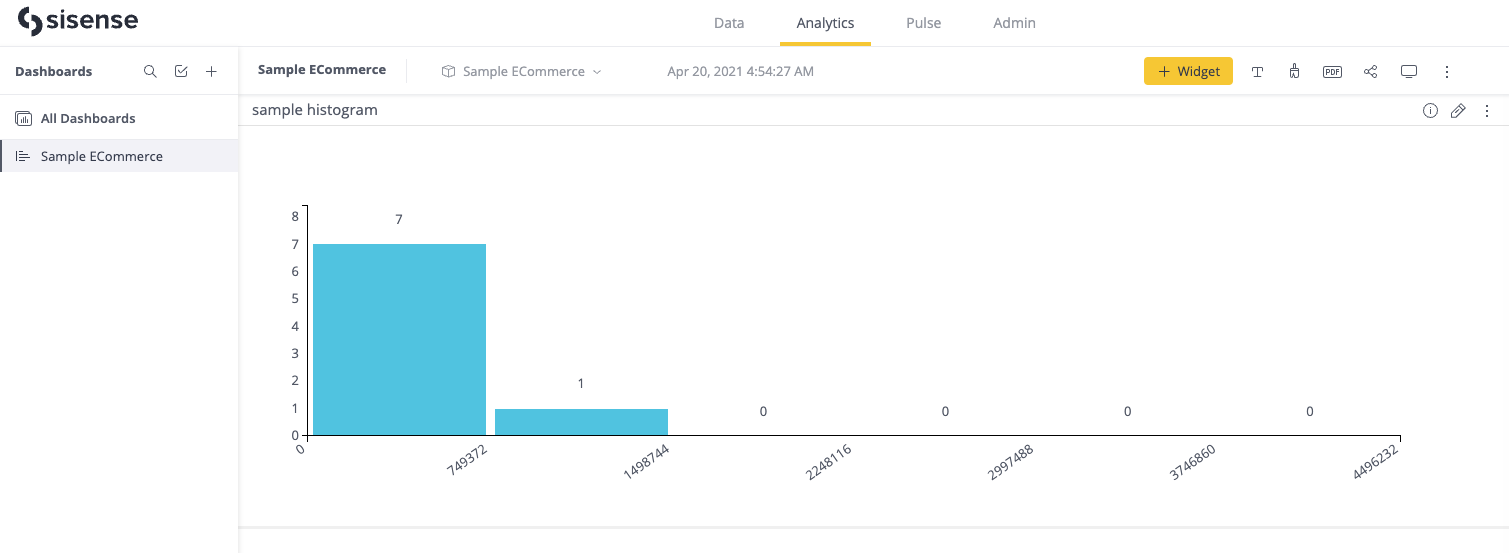

The histogramwidget plugin is included with Sisense Fusion, so we'll be using it as our example. We'll start by creating a dashboard in Fusion, containing a single histogramwidget widget with Sample ECommerce as its data source.

Displaying the dashboard in your application

To display a dashboard using Compose SDK, we need the oid for the relevant dashboard. The simplest way to find this, is to copy the value from the end of the URL when viewing the dashboard in Fusion, e.g. /app/main/dashboards/{dashboardOid}.

The dashboard can be easily displayed using the csdk-dashboard-by-id component, passing this value into the dashboardOid input.

<csdk-dashboard-by-id [dashboardOid]="'66f23d1b202c89002abd64ac'" />

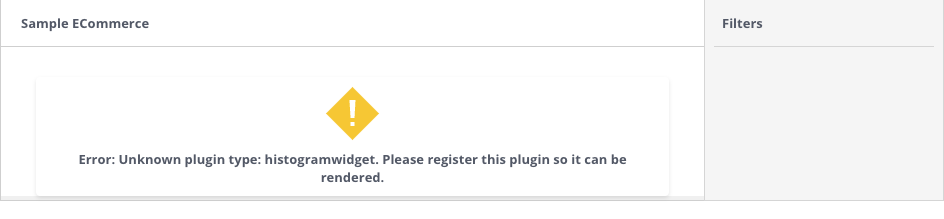

Since Compose SDK does not support the histogramwidget plugin out of the box, it is expected that Compose SDK will display an error in place of the histogram widget.

In order to resolve this, we will explore how to define a custom widget component and register it with Compose SDK, so that it knows what to do when it encounters a histogramwidget plugin from Fusion.

Defining a custom widget using Compose SDK

Before registering our custom widget, we first need to define a custom widget component that will replace the Fusion plugin. This component will:

1. Receive the props that Compose SDK will pass to our custom widget when rendering the csdk-dashboard-by-id component
2. Run a data query using those props
3. Render a visualization with the results

Purely for the simplicity of this guide, we have chosen to define a custom widget component which renders a table of the query results. In reality, you would more likely define an Angular implementation of a histogram chart, or however else you wish to represent the Fusion plugin in your Compose SDK dashboard.

This guide also aims to demonstrate the flexibility of the registerCustomWidget interface - as long as you provide a component that matches the shape of CustomWidgetComponent, Compose SDK will render that component as a replacement for the designated Fusion plugin.

A note on the dataOptions input that is passed to our component: For those familiar with the Fusion plugin / add-on architecture, dataOptions is the Compose SDK equivalent of panels on the WidgetMetadata (opens new window) object.

Compose SDK translates all widget metadata and filters to Compose SDK data structures (e.g. values inside dataOptions are of type StyledColumn and StyledMeasureColumn, the same types you'd expect for dataOptions into the csdk-chart component).

In the custom widget component, we can use the inputs directly with the executeCustomWidgetQuery method from the QueryService which runs a data query and applies some formatting on the results (defined by the StyledColumn information in dataOptions).

import { Component, Input, OnInit } from '@angular/core';
import { QueryService } from '@sisense/sdk-ui-angular';
import type {
  CustomWidgetComponentProps,
  QueryResultData
} from '@sisense/sdk-ui-angular';
import { Observable } from 'rxjs';

@Component({
  selector: 'app-results-table',
  template: `
    <table style="margin: 20px;" *ngIf="data$ | async as data">
      <thead>
        <tr>
          <th *ngFor="let column of data.columns; trackBy: trackByIndex">
            {{ column.name }}
          </th>
        </tr>
      </thead>
      <tbody>
        <tr *ngFor="let row of data.rows; trackBy: trackByIndex">
          <td *ngFor="let cell of row; trackBy: trackByIndex">
            {{ cell.text }}
          </td>
        </tr>
      </tbody>
    </table>
  `
})
export class ResultsTableComponent implements OnInit, CustomWidgetComponentProps {
  @Input() title!: string;
  @Input() dataOptions!: any;
  @Input() filters!: any[];

  data$!: Observable<QueryResultData | null>;

  constructor(private queryService: QueryService) {}

  ngOnInit() {
    this.data$ = this.queryService.executeCustomWidgetQuery({
      title: this.title,
      dataOptions: this.dataOptions,
      filters: this.filters
    });
  }

  trackByIndex(index: number): number {
    return index;
  }
}

Note: Don't forget to declare your custom widget component in your Angular module

If you prefer to work with the raw data without any formatting applied, you can use extractDimensionsAndMeasures with executeQuery instead.

import { extractDimensionsAndMeasures } from '@sisense/sdk-ui-angular';

ngOnInit() {
  const { dimensions, measures } = extractDimensionsAndMeasures(this.dataOptions);
  this.data$ = this.queryService.executeQuery({
    dimensions,
    measures,
    filters: this.filters,
  });
}

Registering the custom widget with Compose SDK

To register the custom widget, we need to inject the CustomWidgetsService and call registerCustomWidget.

import { Component, OnInit } from '@angular/core';
import { CustomWidgetsService } from '@sisense/sdk-ui-angular';
import { ResultsTableComponent } from './results-table.component';

@Component({
  selector: 'app-root',
  template: `
    <csdk-dashboard-by-id [dashboardOid]="'66f4d4dd384428002ae0a21d'" />
  `
})
export class AppComponent implements OnInit {
  constructor(private customWidgetsService: CustomWidgetsService) {}

  ngOnInit() {
    this.customWidgetsService.registerCustomWidget('histogramwidget', ResultsTableComponent);
  }
}

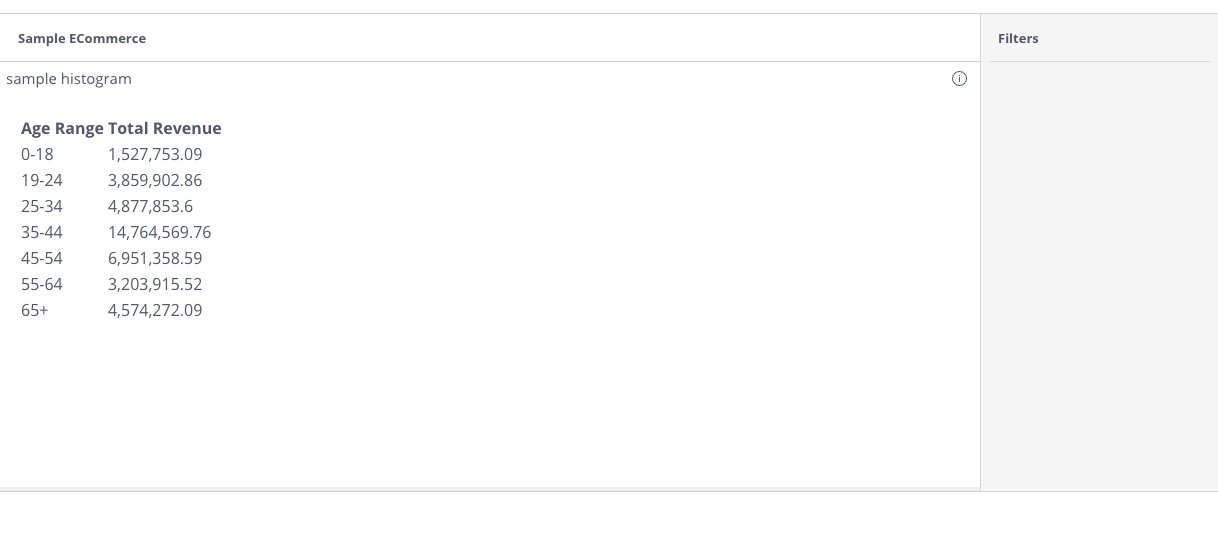

If we refresh our application, instead of seeing the error in place of the widget as before, we should now see something like this:

Summary

Here's what we accomplished:

• Displayed an existing Fusion dashboard in our application by rendering a csdk-dashboard-by-id component
• Created an Angular component that uses its inputs to execute a data query and display the results in a table
• Registered that table component as a custom widget to be shown in place of the histogramwidget Fusion plugin when it is rendered inside of a csdk-dashboard-by-id component

Obviously, we didn't end up with a new histogram component in Angular (yet), but hopefully the simplicity of this guide gives you the tools to you need to make that, or anything else, happen!
