Lesson 1 | Setup

In this lesson, you’ll learn how to set up a new Compose SDK project and display a chatbot in that project. If you've gone through the Charts Tutorial, you'll notice that it's similar to Lesson 1.

Prerequisites

Before getting started, you’ll need:

• Node.js version 16 or higher
• npm

You’ll also need access to a Sisense instance with:

• The Sample Retail and Sample ECommerce data sources (you may need to go into each data model and unhide some of the columns that are hidden by default)
• An API Token you can use to query with
• CORS settings that allow requests from http://localhost:5173, the URL that Vite serves your project on locally
• GenAI enabled

Create a project

Let’s start by creating a React project and installing dependencies. We’ll use Vite to create a new project.

1. Navigate to the directory where you want to create your project
2. Run npm create vite@latest
3. Name your project compose-sdk-genai-tutorial when prompted
4. Select React as the framework
5. Select TypeScript as the variant
6. Run cd compose-sdk-genai-tutorial to navigate to your project directory
7. Run npm install to install your project and dependencies
8. Run npm i @sisense/sdk-ui @sisense/sdk-data to install Sisense packages

Add context providers

Now we can start writing our first bit of code.

Since most of our Compose SDK functionality needs access to a Sisense instance, the first thing we need to do is set up that access with <SisenseContextProvider>. There are a number of places you can choose to add it. Here, we’ll add the provider in main.tsx.

In main.tsx, import the SisenseContextProvider from the sdk-ui module:

import { SisenseContextProvider } from '@sisense/sdk-ui';

Wrap the <App> component with a <SisenseContextProvider> like this:

<SisenseContextProvider
  url={import.meta.env.VITE_APP_SISENSE_URL}
  token={import.meta.env.VITE_APP_SISENSE_TOKEN}
>
  <App />
</SisenseContextProvider>

This will read the Sisense instance URL and API Token from an .env, so let’s add that file now.

1. Create a file named .env.local in your project’s root directory
2. Add a VITE_APP_SISENSE_URL variable and set its value to your Sisense instance’s URL
3. Add a VITE_APP_SISENSE_TOKEN variable and set it value to your API Token

Your .env.local file should look something like this:

VITE_APP_SISENSE_URL="http://myinstanceurl/"
VITE_APP_SISENSE_TOKEN="OiJhbGJeyciIUzI1..."

You'll also need the <AiContextProvider>. This is required for using any of the components exported from @sisense/sdk-ui/ai.

In main.tsx, import the SisenseContextProvider from the sdk-ui/ai namespace:

import { AiContextProvider } from '@sisense/sdk-ui/ai';

This component internally uses the SisenseContextProvider, so we'll go ahead and nest this provider in between our <SisenseContextProvider> and <App> components.

<SisenseContextProvider
  url={import.meta.env.VITE_APP_SISENSE_URL}
  token={import.meta.env.VITE_APP_SISENSE_TOKEN}
>
  <AiContextProvider>
    <App />
  </AiContextProvider>
</SisenseContextProvider>

Add a chatbot

Finally, with all the setup out of the way, we can add a chatbot to our project.

In the App.tsx file, import the <Chatbot> component.

Note: From here on in we won’t mention imports anymore. Just know that you’ll need to add the appropriate imports as we continue to add code to our project.

import { Chatbot } from '@sisense/sdk-ui/ai';

Then, replace the contents of the App() function with the following code to render a basic chatbot.

return (
  <Chatbot />
);

Run

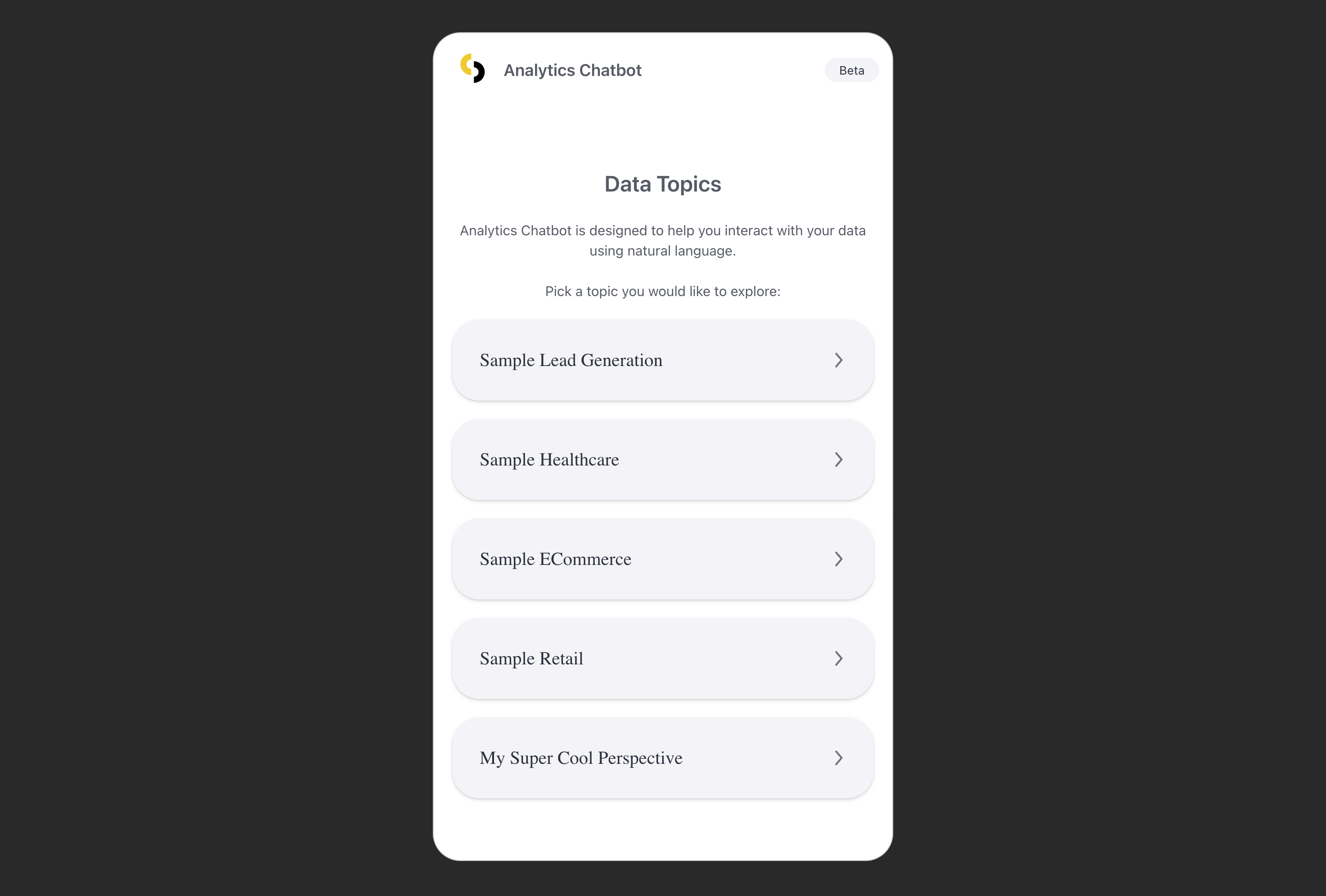

Use the npm run dev command to get your project up and running so you can see it in action. Navigate to http://localhost:5173 in a browser to see your chatbot. It should look like this:

Nice! We now have a chatbot that shows available data topics. Clicking on a data topic will start a chat with that data model/perspective as the chat context.

Up next

In the next lesson, you'll learn how to customize the chatbot and render multiple chatbots on the same page. Go to Lesson 2.
