Function DrilldownWidget

DrilldownWidget(props): Promise< ReactNode > | ReactNode

React component designed to add drilldown functionality to any type of chart.

This component acts as a wrapper around a given chart component, enhancing it with drilldown capabilities.

The widget offers several features including:

A context menu for initiating drilldown actions (can be provided as a custom component)
Breadcrumbs that not only allow for drilldown selection slicing but also provide an option to clear the selection (can be provided as a custom component)
Filters specifically created for drilldown operation
An option to navigate to the next drilldown dimension

When an initialDimension is specified, the drilldownDimension will automatically inherit its value, even before any points on the chart are selected. This allows for complete control over the chart's dimensions to be handed over to the DrilldownWidget.

Parameters

Parameter	Type	Description
`props`	`DrilldownWidgetProps`	DrilldownWidget properties

Returns

Promise< ReactNode > | ReactNode

DrilldownWidget wrapper component

Example

A column chart displaying total revenue by category from the Sample ECommerce data model. The chart can be drilled down by age range, gender, and condition.

import { measureFactory } from '@sisense/sdk-data';
import { Chart, DataPoint, DrilldownWidget } from '@sisense/sdk-ui';
import * as DM from './sample-ecommerce';

const CodeExample = () => (
  <DrilldownWidget
    drilldownPaths={[DM.Category.Category, DM.Commerce.Gender, DM.Commerce.Condition]}
    initialDimension={DM.Commerce.AgeRange}
  >
    {({ drilldownFilters, drilldownDimension, onDataPointsSelected, onContextMenu }) => {
      const onPointsSelected = (points: DataPoint[], nativeEvent: MouseEvent) => {
        onDataPointsSelected(points, nativeEvent);
        onContextMenu({ left: nativeEvent.clientX, top: nativeEvent.clientY });
      };

      const onPointClick = (point: DataPoint, event: MouseEvent) => {
        onDataPointsSelected([point], event);
        onContextMenu({ left: event.clientX, top: event.clientY });
      };

      return (
        <Chart
          dataSet={DM.DataSource}
          chartType={'column'}
          dataOptions={{
            category: [drilldownDimension],
            value: [measureFactory.sum(DM.Commerce.Revenue)],
            breakBy: [],
          }}
          filters={drilldownFilters}
          onDataPointsSelected={onPointsSelected}
          onDataPointContextMenu={onPointClick}
        />
      );
    }}
  </DrilldownWidget>
);

export default CodeExample;

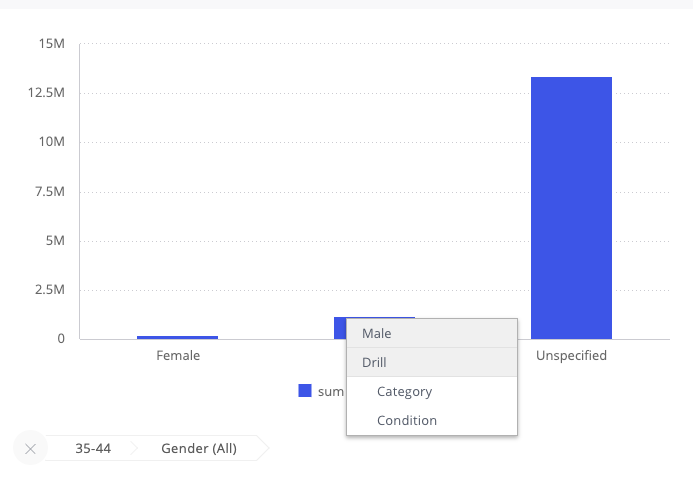

Variant with the breadcrumbs rendered separately from the chart, via isBreadcrumbsDetached:

import { measureFactory } from '@sisense/sdk-data';
import { Chart, DataPoint, DrilldownBreadcrumbs, DrilldownWidget } from '@sisense/sdk-ui';
import * as DM from './sample-ecommerce';

const CodeExample = () => (
  <DrilldownWidget
    drilldownPaths={[DM.Category.Category, DM.Commerce.Gender, DM.Commerce.Condition]}
    initialDimension={DM.Commerce.AgeRange}
    config={{ isBreadcrumbsDetached: true, breadcrumbsComponent: DrilldownBreadcrumbs }}
  >
    {({
      drilldownFilters,
      drilldownDimension,
      onDataPointsSelected,
      onContextMenu,
      breadcrumbsComponent,
    }) => {
      const onPointsSelected = (points: DataPoint[], nativeEvent: MouseEvent) => {
        onDataPointsSelected(points, nativeEvent);
        onContextMenu({ left: nativeEvent.clientX, top: nativeEvent.clientY });
      };

      const onPointClick = (point: DataPoint, event: MouseEvent) => {
        onDataPointsSelected([point], event);
        onContextMenu({ left: event.clientX, top: event.clientY });
      };

      return (
        <>
          <Chart
            dataSet={DM.DataSource}
            chartType={'column'}
            dataOptions={{
              category: [drilldownDimension],
              value: [measureFactory.sum(DM.Commerce.Revenue)],
              breakBy: [],
            }}
            filters={drilldownFilters}
            onDataPointsSelected={onPointsSelected}
            onDataPointContextMenu={onPointClick}
          />
          <div>{breadcrumbsComponent}</div>
        </>
      );
    }}
  </DrilldownWidget>
);

export default CodeExample;
