Function AreaRangeChart

AreaRangeChart(props): Promise< ReactNode > | ReactNode

A React component that displays a range of data over a given time period or across multiple categories. It is particularly useful for visualizing the minimum and maximum values in a dataset, along with the area between these values.

Parameters

Parameter	Type	Description
`props`	`AreaRangeChartProps`	Area Range chart properties

Returns

Promise< ReactNode > | ReactNode

Area Range Chart component

Example

Area range chart displaying total revenue per quarter from the Sample ECommerce data model, with the range spanning 60%-140% of the actual revenue.

import { AreaRangeChart } from '@sisense/sdk-ui';
import { measureFactory } from '@sisense/sdk-data';
import * as DM from './sample-ecommerce';

const CodeExample = () => (
  <AreaRangeChart
    dataSet={DM.DataSource}
    dataOptions={{
      category: [DM.Commerce.Date.Quarters],
      value: [
        {
          title: 'Revenue',
          upperBound: measureFactory.multiply(measureFactory.sum(DM.Commerce.Revenue), 1.4, 'Upper Revenue'),
          lowerBound: measureFactory.multiply(measureFactory.sum(DM.Commerce.Revenue), 0.6, 'Lower Revenue'),
        },
      ],
      breakBy: [],
    }}
  />
);

export default CodeExample;

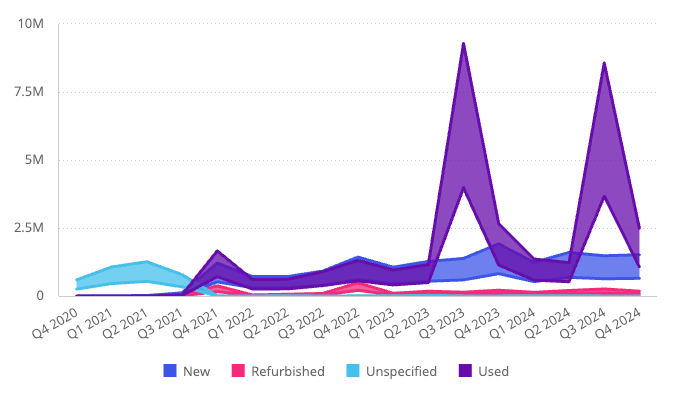

The same range broken down by condition:

<AreaRangeChart
  dataSet={DM.DataSource}
  dataOptions={{
    category: [DM.Commerce.Date.Quarters],
    value: [
      {
        title: 'Revenue',
        upperBound: measureFactory.multiply(measureFactory.sum(DM.Commerce.Revenue), 1.4, 'Upper Revenue'),
        lowerBound: measureFactory.multiply(measureFactory.sum(DM.Commerce.Revenue), 0.6, 'Lower Revenue'),
      },
    ],
    breakBy: [DM.Commerce.Condition],
  }}
/>
